Recessed Power Strip
An embedded installation solution designed for commercial and industrial scenarios, using high-strength materials for precision manufacturing, supporting standardized and customized dimensions, and meeting global electrical code requirements, secure, stable, and aesthetically pleasing electrical connection.
Modular Jack Free Combination Scheme
As a professional manufacturer, we provide high degree of Freedom Jack Custom Module:
Hole optional: Support AC power/USB-C/Type-A/network port and other 20 + port type mashup
Custom layout: horizontal/vertical arrangement, spacing density, tilt angle design according to requirements
Cascade Extension: A single module can integrate 1-12 interfaces, multi-module seamless splicing
Authentication guarantee: All Interfaces are UL/CE/IEC securely certified and compatible with global voltage
America B Plug
Europe F Plug
UK G Plug
Australia I Plug
France C-E Plug
Universality Socket
Thailand O Plug
Brazil C-N Plug
Denmark C Plug
Industrial-Grade Tri-Power Station

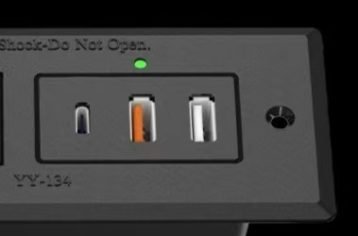

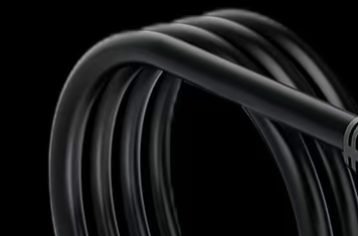

1500W AC｜USB-C 20W PD+USB-A 18W QC｜V0 Flame retardant case | 16AWG * 2m U LCable | CE/FCC certification
Precision Engineering
Compact design reduces energy loss by 30%. Certified materials eliminate safety risks for homes/hotels/offices.
Parameter | Value |
Dimensions | 86×86×28mm |
Weight | 85g |
Material | Fireproof PC + nickel-plated oxygen-free copper |
Colors | Ivory White / Space Gray |
Voltage | 100-250V 50/60Hz |
Current | 10A MAX |
Certification | CE, CCC, RoHS, UL |
Service Of Dimension Customization
As a professional manufacturer, we provide precision dimensional customization of square sockets. Flexible to suit your project needs:
Panel size(Panel Size: L x W)
Cutout Dimensions
Mounting Depth
And other key parameters.
Free from standard restrictions, perfect fit your unique application space.
Precision Installation Steps
Three simple steps to ensure accurate and stable installation. Key: precise hole size (± 1 mm) .

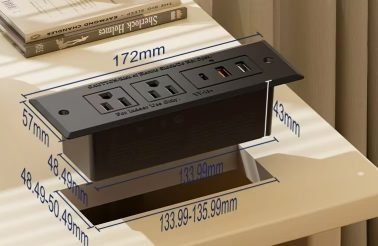

1.Repare Precision Cutout
Cutout Dimensions: 134 – 136 mm (L) x 48.5 – 50.5 mm (W)
Critical Tolerance: Cutout must be within ±1mm of the specified dimensions to ensure proper frame alignment and stability. (Note: This tolerance range allows for smooth installation while accommodating manufacturing variations.)
2.Secure Panel with Screws
Position the socket panel accurately within the prepared cutout.
Firmly secure the panel in place using the provided mounting screws.

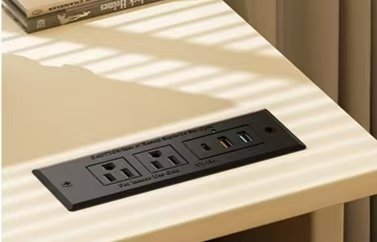

3.Complete Installation
Proceed with final electrical connections according to local regulations and specifications.
Installation is now finished.
6 Core Advantages Redefine Safety
Tool-Free Install
Snap-fit design: 3-step installation, 80% faster than traditional sockets
Space Optimized
28mm depth sits flush with surfaces, ideal for minimalist interiors
Fireproof Safety
950°C self-extinguishing PC + dual-spring shutters (CE/CCC/RoHS certified)
Global Compatibility
Accepts US/EU/UK plugs, optional 30W USB-C module
Heavy-Duty Load
2500W/10A rating with auto cut-off for high-power appliances
10-Year Durability
50,000 plug cycles tested, nickel-plated copper resists corrosion
Transparent Pricing & MOQ
Competitive bulk rates with flexible options. Details ensure cost control.
Unit Price
FOB Shenzhen: USD $28.50 / piece
Product customization
According to the customer specified requirements to provide, custom design and production.
Minimum order quantity
MOQ: 500 pieces. Tiered discounts: 5% for 1k+, 10% for 5k+.
Packing information
Each in foam box; carton: 30x30x20cm, 6kg net; holds 20 pieces. Customizable.
Application Scenarios
Sofa
Solution: the inner side of the armrest pop-up socket (waterproof version)

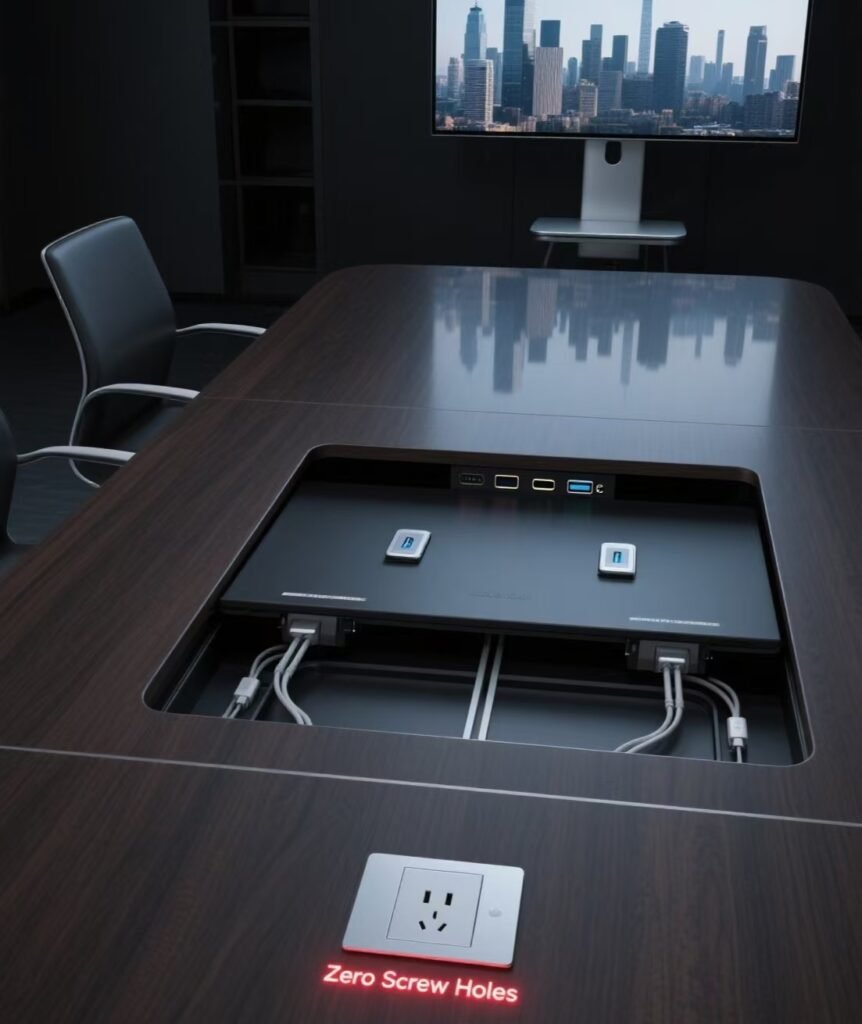

Conference table
Solution: under the table magnetic cover plate + lift double C port
Custom cabinets
Solution: wardrobe skirting line bit embedded installation
Our Certificate
End-to-End Support
6-Point Global Service Guarantee
3-Year Warranty
Free replacement for non-manual damage. 15-day response for overseas issues.
Free Samples
Pay shipping only. Custom logos accepted. Ships in 72hrs.
On-Time Delivery
30-day standard lead time. 15-day rush orders. Late-day compensation.
Flexible Payments
T/T, L/C, PayPal, Credit Cards. 30% deposit accepted.
Global Logistics
DDP/DDP door-to-door service to 200+ countries. Customs clearance included.
24/7 Support
Multilingual team. 48hr replacement for defective units. Local warehouses.
Why Choose Us？
Engineering strength
15 years experience in engineering team | 30 + lifting technology patents
Supply Chain Assurance
Mold → injection → PCBA whole chain production | 48 hours high speed proofing
Global Services
Multilingual after-sales support | Global DHL/FedEx Direct
Have any Question?
Submit Your Request
Frequently Asked Questions
50 kg compression without deformation
Global voltage adaptation
Provide 3D printing templates
