Power Grommet
Designed for harsh industrial environments, commercial facilities and high-end equipment integration of professional-grade circular cable ring embedded socket.
The product is made of high-strength engineering materials, combined with precision sealing structure, providing excellent electrical performance, durable mechanical protection and reliable connection solutions. Its unique circular cable ring installation design, to ensure that the panels, cabinets or equipment shell to achieve clean, solid and dust-proof waterproof embedded installation, is the ideal choice for modern electrical wiring and equipment power interface.
Integrated Power Module
This industrial socket module supports, China (GB2099.1) , the United Kingdom (BS1363) , Australia (AS/NZS3112) , the European Union (CEE7/16) , the United States (NEMA 5-15) five standard Jack free configuration, 10-second quick change-over with patented snap-on structure. The full range is certified as safe for the target market (e.g. CCC/BSI/SAA/CE/UL)
Applicable to export equipment, multi-country exhibition hall, cross-border logistics devices, and other scenarios, to eliminate regional power barriers, reduce the cost of stock and operation and maintenance.
China
The United Kinfdom
Australian Socket
European
American Socket

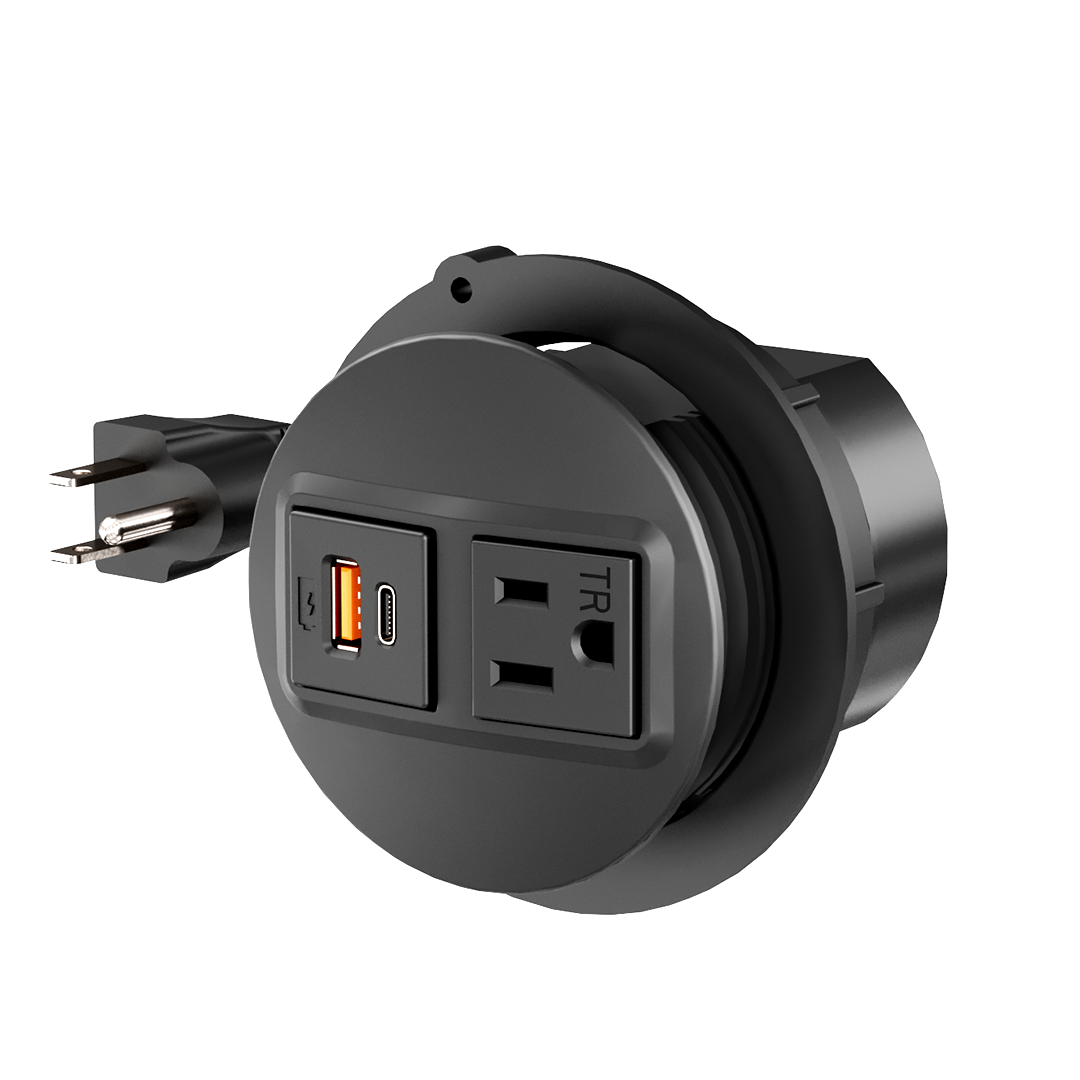

Three-in-one Round Fast Charging Socket Module
This round socket module is designed for powering high-performance equipment scenarios, integrated, n standard AC socket (110V-130V/12A/1560W) , usb-cpd3.020W fast charging and USB-A Qc3.018W fast charging, ports, and built-in 10W wireless charging panel.
It adopts 1.5 m 16 # three-core flat cable (low resistance, anti-winding) to support high-power stable transmission; nut fixing structure ensures installation stability, which is suitable for workbench, smart home, commercial equipment and other scenarios, efficient power distribution with”Multi-charge on one line”.
Precision Engineering
Solve space constraints with our 9cm diameter form factor – 34% smaller than standard sockets yet delivers 15% higher current density.
Parameters | Value | Buyers benefit |
Material Core | Phosphor bronze + PC alloy | 6x conductivity vs aluminum |
Operating Temp | -30℃ to 85℃ | Sahara to Siberia stable |
Insertion Cycles | 25,000+ | Outlasts building wiring |
Surge Protection | 6kV/3kA suppression | Protects $8k+ AV equipment |
Application Scenes | Marine/Motorhomes/Retail | Vibration-resistant |
Competitive Edge | UL & ENEC certified | Meets EU/US commercial code |
Precision-Engineered Socket Module | Standard & Fully Custom Dimensions | Global Compliance
Modular Power Solution with Dimensional Flexibility

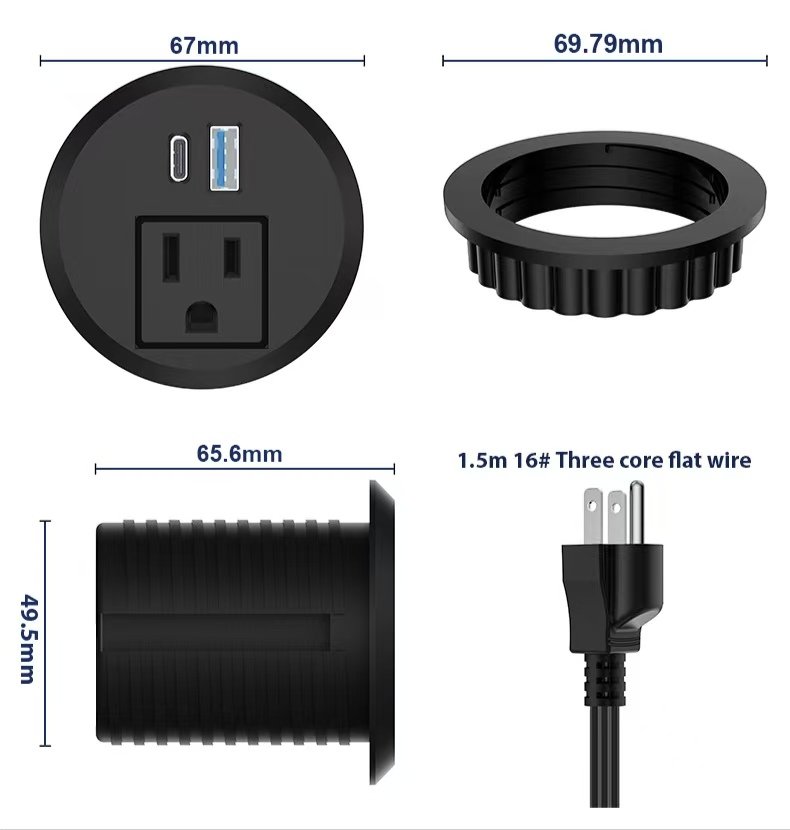

This industrial-grade socket module features precision-machined components with rigorously validated standard dimensions (refer to technical drawing). We specialize in fully customized sizing to meet unique panel integration requirements, including:
Bespoke cutout dimensions (Diameter/Profile/Depth)
Adaptable terminal compartment sizing
Client-specified mounting configurations
All custom units maintain:
• Certified safety performance (IEC/UL/CE compliant)
• ±0.25mm machining tolerance
• Material integrity (V0-rated polymer housing)
Ideal for OEM equipment, retrofit installations, and specialized enclosures where dimensional precision impacts functionality. Request your project-specific CAD files today.
Standard & Fully Custom Dimensions | Global Compliance
Modular Power Solution with Dimensional Flexibility
This industrial-grade socket module features precision-machined components with rigorously validated standard dimensions (refer to technical drawing). We specialize in fully customized sizing to meet unique panel integration requirements, including:
Bespoke cutout dimensions (Diameter/Profile/Depth)
Adaptable terminal compartment sizing
Client-specified mounting configurations
All custom units maintain:
• Certified safety performance (IEC/UL/CE compliant)
• ±0.25mm machining tolerance
• Material integrity (V0-rated polymer housing)
Ideal for OEM equipment, retrofit installations, and specialized enclosures where dimensional precision impacts functionality. Request your project-specific CAD files today.

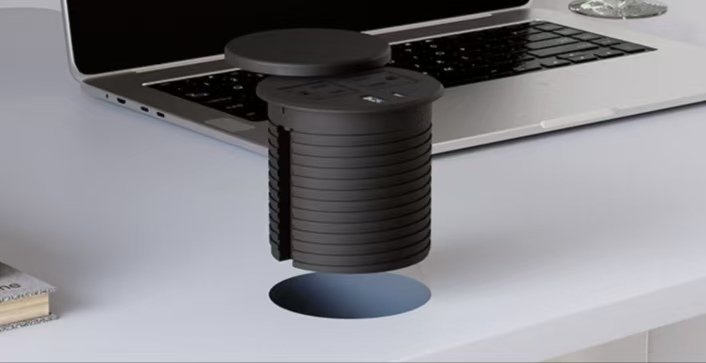

Industrial-Grade Flush Mount Installation
Three-step precision installation: 1. Precision tapping (74.2-76.2 mm ± 1)2. Base insert 3. Bolt torque tightening | need professional tools | no installation beyond tolerance

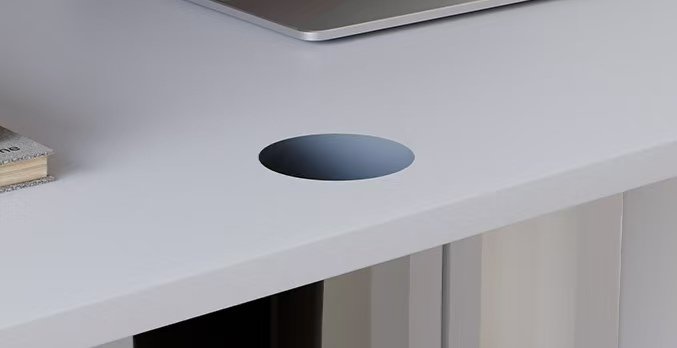

1.Precision tapping
Opening size: 74.2-76.2 mm (tolerance ± 1 mm)
Use professional cutting tools to ensure smooth edges without burr
2.Built-in base
Align the product with the opening and insert vertically
3.Fasten the bolt
Install Bottom M 4 bolts and tighten clockwise with torque wrench (recommended torque 0.6-0.8 N M)
⚠️Key Requirements: hole accuracy directly affects the stability, is strictly prohibited more than 76.2 mm
6 Innovations That Solve Real Problems
Anti-Spark Tech
Zero arcing during plug insertion with 0.1ms breakers
ChildLock System
Spring-loaded shutters require 7kg force activation
Thermal Armor
Self-cooling fins reduce heat by 43℃ at max load
Rotating Ports
Adjust sockets 25° for oversized adapters
Global Voltage
Auto-detect 100-240V with surge protection
ScrathShield
Aircraft-grade coating resists tools marks
Transparent Pricing & MOQ
Competitive bulk rates with flexible options. Details ensure cost control.
Unit Price
FOB Shenzhen: USD $28.50 / piece
Product customization
According to the customer specified requirements to provide, custom design and production.
Minimum order quantity
MOQ: 500 pieces. Tiered discounts: 5% for 1k+, 10% for 5k+.
Packing information
Each in foam box; carton: 30x30x20cm, 6kg net; holds 20 pieces. Customizable.
Beyond Transaction
Engineered Support System
Lifetime QC
Sample Policy
$10 sample fee (deductible), we cover DHL shipping
18-Day Rush
Production starts within 72h of PO confirmation
Payment Flex
PayPal/TT/LC with 30% deposit protection
Door-to-Door
EXW/FOB/DDP options with customs clearance
24/7 Tech Aid
Video diagnostics with regional repair hubs
Application Scenarios
Desk
Office
Sofa
Why Choose Us？
Engineering strength
15 years experience in engineering team | 30 + lifting technology patents
Supply Chain Assurance
Mold → injection → PCBA whole chain production | 48 hours high speed proofing
Global Services
Multilingual after-sales support | Global DHL/FedEx Direct
Our Certificate
Have any Question?
Submit Your Request
Frequently Asked Questions
Compatible with 15-60mm surfaces (reinforced clamps for >40mm). Custom collars available for non-standard applications.
Yes. Configure any mix of sockets:
• 2-3 AC (10A-16A)
• USB-C PD 100W
• USB-A QC3.0
• RJ45 Ethernet
Absolutely. Choose:
Finishes: Brushed metal, matte black, custom RAL colors
Materials: Anodized aluminum, stainless steel, ABS
Branding: Laser-etched logos
Standard units include CE/UKCA/RoHS. UL/FCC available for North American orders (lead time +5 days).
Integrated strain relief + 360° rotating base allows clean wire routing underneath desks. Optional cable sleeves available.
300 units for custom colors/sockets. 1,000+ for hybrid tech (AC+USB+Ethernet). Stock designs: 100 units.
Yes – installation requires 80mm circular cutout (template provided). Anti-rotation teeth prevent loosening.
Modular inserts allow future upgrades. Replacement cartridges available for next-gen ports (USB4, GaN tech).
